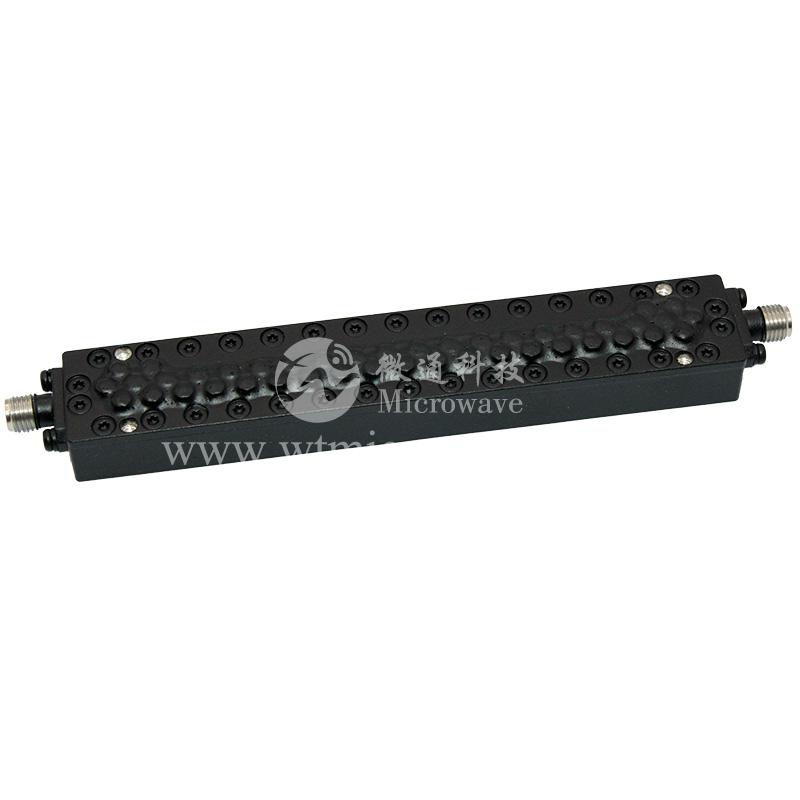

コームバンドパスフィルター

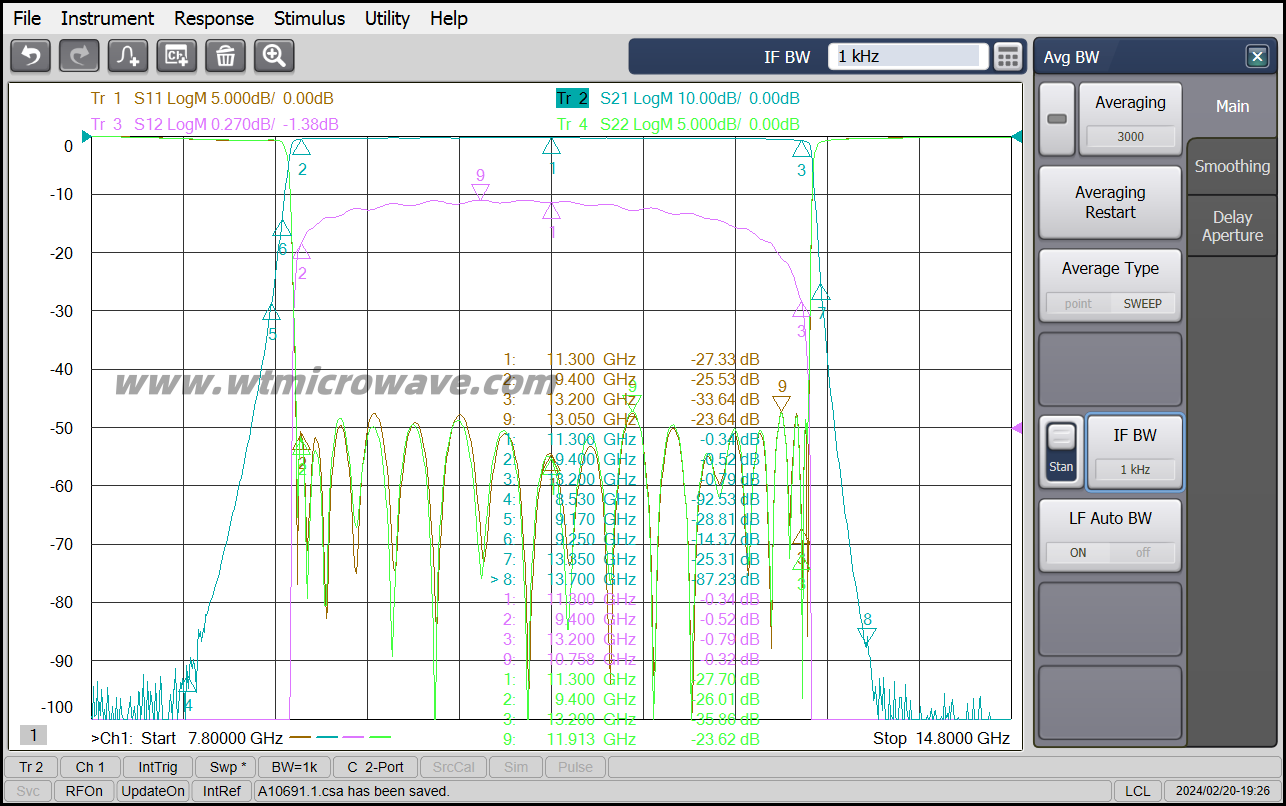

S/N

Item

Parameters

1

Center Frequency(F0)

11300MHz

2

Pass Band Frequency

9400 ~ 13200MHz ^**

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.7dB

5

Pass Band Return Loss

≥20dB

6

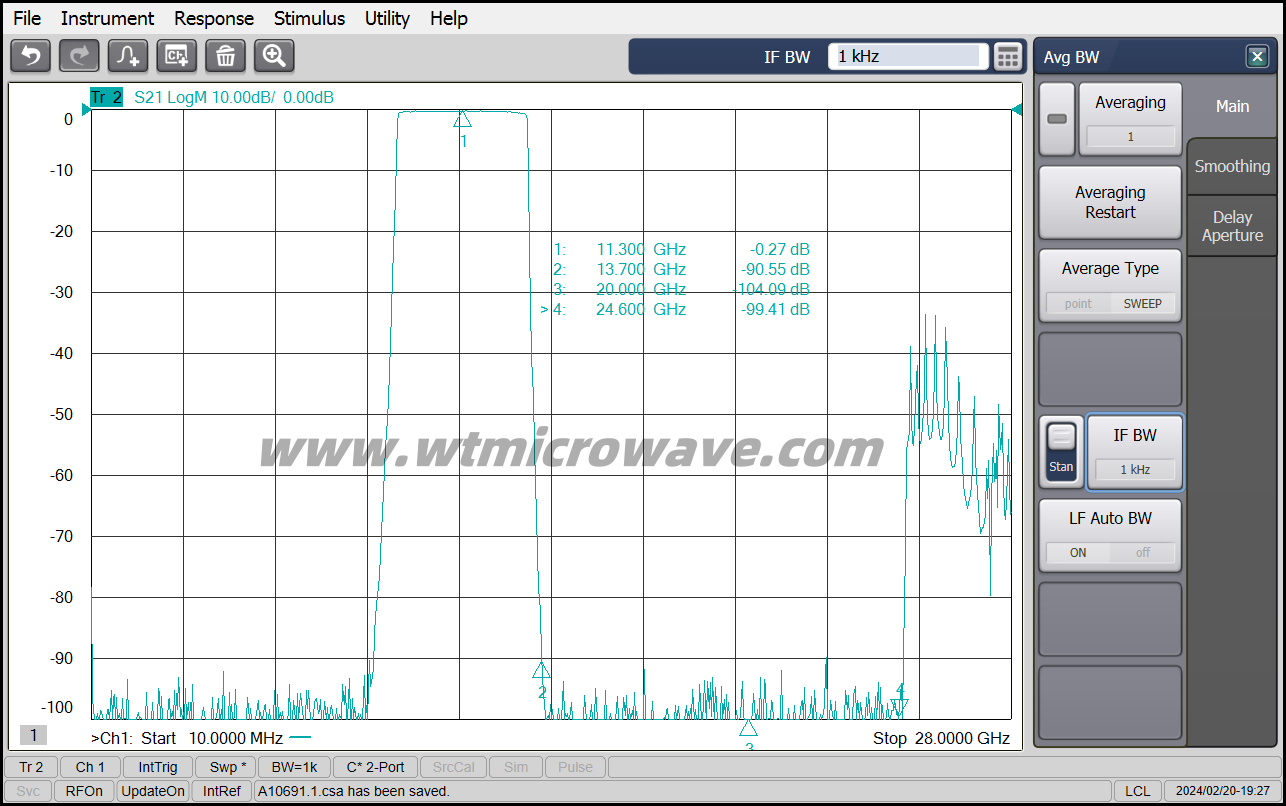

Stop Band Rejection

≥80dB @ DC ~ 8530MHz

≥20dB @ 8530 ~ 9170MHz

≥10dB @ 9170 ~ 9250MHz

≥20dB @ 13350 ~ 13700MHz

≥80dB @ 13700 ~ 23500MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-10℃ ~ +50℃

12

Material

Housing: H62 Copper alloy

Cover: H62 Copper alloy

Tuning screw: H62 Copper alloy

Connectors: Stainless Steel

Other screw: Stainless Steel

13

Dimensions

110*16*10mm

14

Net weight

0.117 KG
