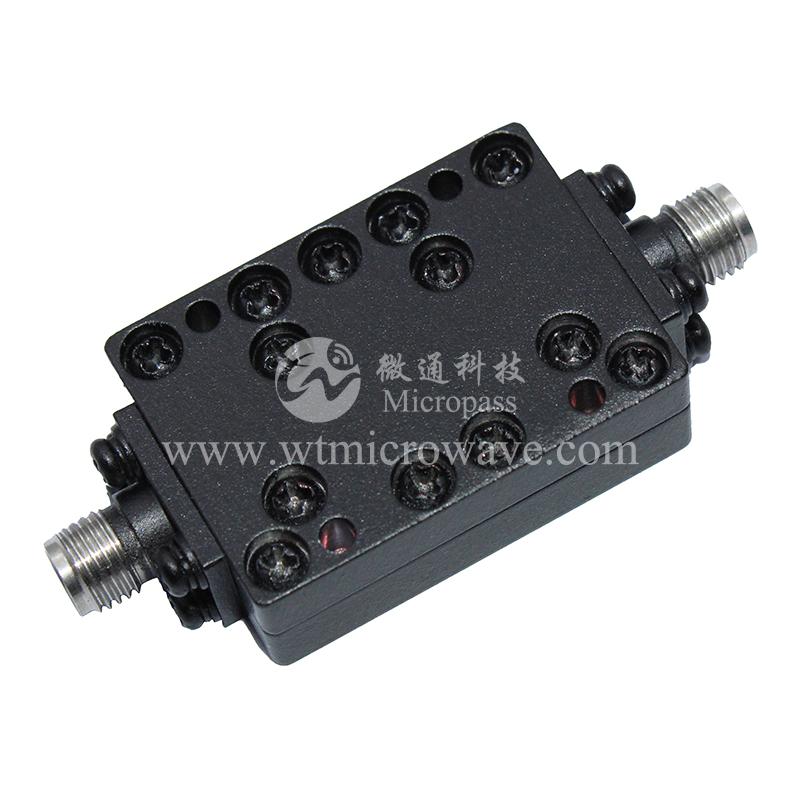

中断されたストリップラインローパスフィルター

S/N

Item

Parameters

1

Cut Off Frequency

5.0GHz

2

Pass Band Frequency

DC ~ 5.0GHz

3

Pass Band Insertion Loss

≤1.0dB @ DC ~ 4.8GHz

≤1.5dB @ 4.8 ~ 5.0GHz

4

Pass Band VSWR

≤1.3:1

5

Stop Band Attenuation

≥60dB @ 5.58 ~ 15GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

31*22*10mm

13

Net weight

0.02 KG
