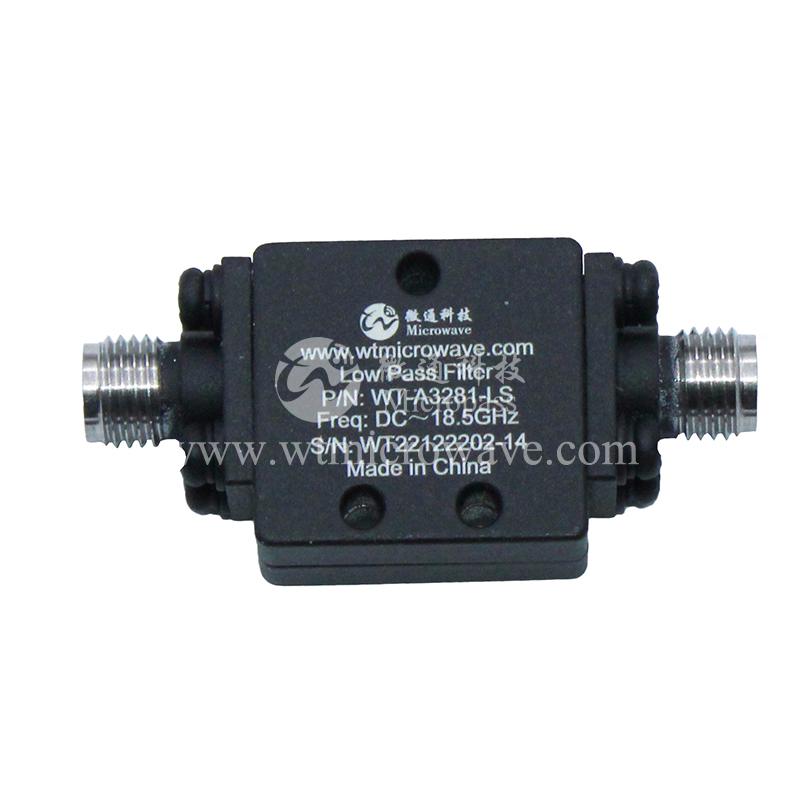

中断されたストリップラインローパスフィルター

S/N

Item

Parameters

1

Cut Off Frequency

18.5GHz

2

Pass Band Frequency

DC ~ 18.5GHz

3

Pass Band Insertion Loss

≤1.0dB @ DC ~ 17.7GHz

≤3.0dB @ 17.7 ~ 18.5GHz

4

Pass Band VSWR

≤1.6:1

5

Stop Band Attenuation

≥50dB @ 19.6 ~ 26GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

18*17*10mm

13

Net weight

0.015 KG
