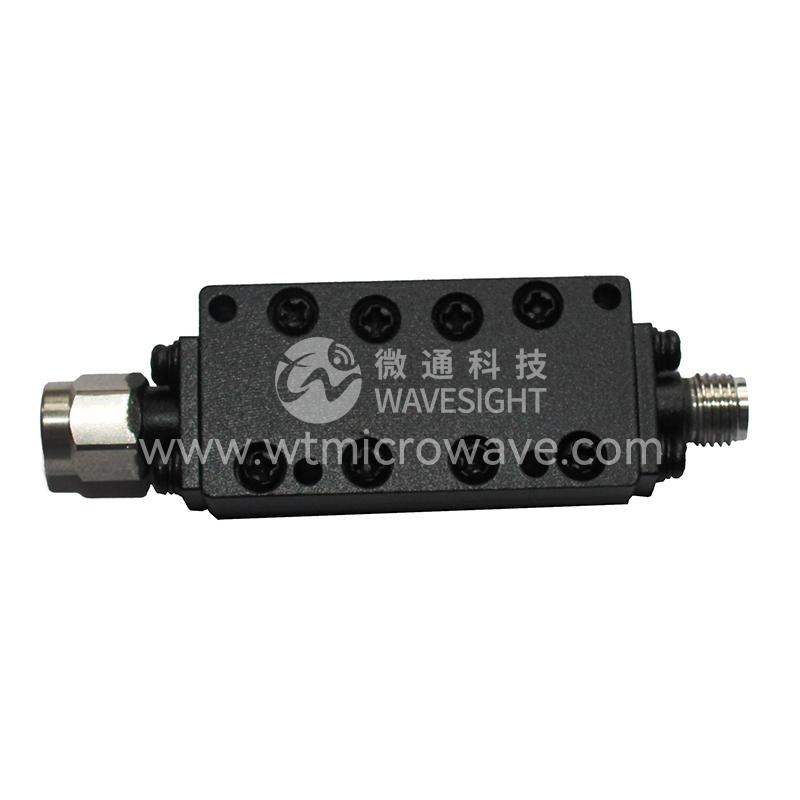

مرشح خطي عالي المرور المعلق

S/N

Item

Parameters

1

Cut Off Frequency

2.25GHz

2

Pass Band Frequency

2.25 ~ 19GHz

3

Pass Band Insertion Loss

≤1.5dB @ 2.25 ~ 2.35GHz

≤1.0dB @ 2.35 ~ 19GHz

4

Pass Band VSWR

≤1.5:1

5

Stop Band Attenuation

≥50dB @ DC ~ 1.77GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

35*17.5*10mm

13

Net weight

0.022 KG
