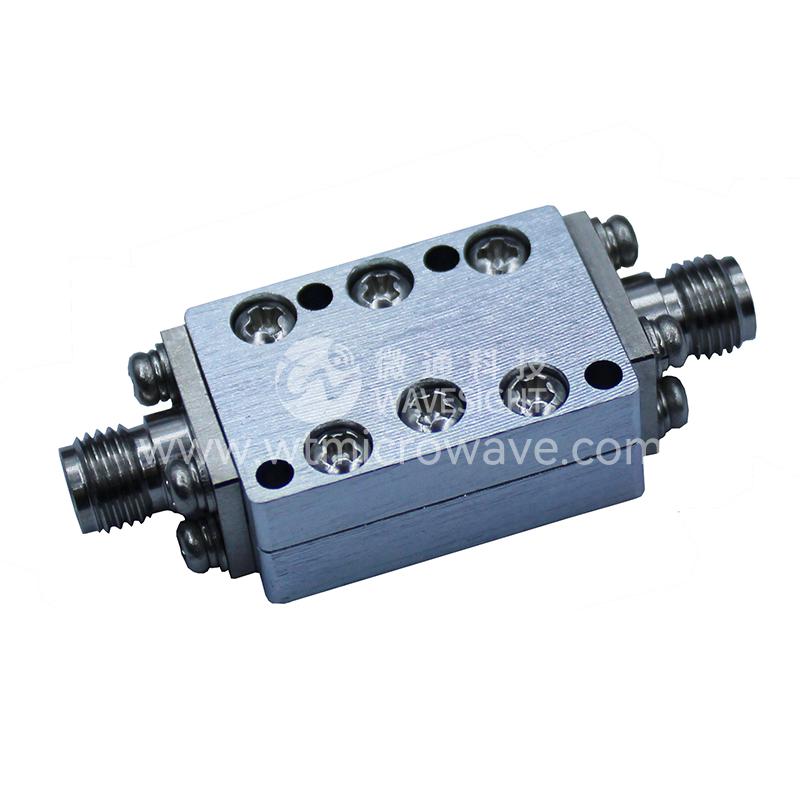

مرشح خطي عالي المرور المعلق

S/N

Item

Parameters

1

Cut Off Frequency

4.5GHz

2

Pass Band Frequency

4.5 ~ 23.5GHz

3

Pass Band Insertion Loss

≤1.5dB @ 4.5 ~ 4.65GHz

≤1.0dB @ 4.65 ~ 23.5GHz

4

Pass Band VSWR

≤1.5:1

5

Stop Band Attenuation

≥50dB @ DC ~ 3.55GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

24*16*10mm

13

Net weight

0.016 KG
