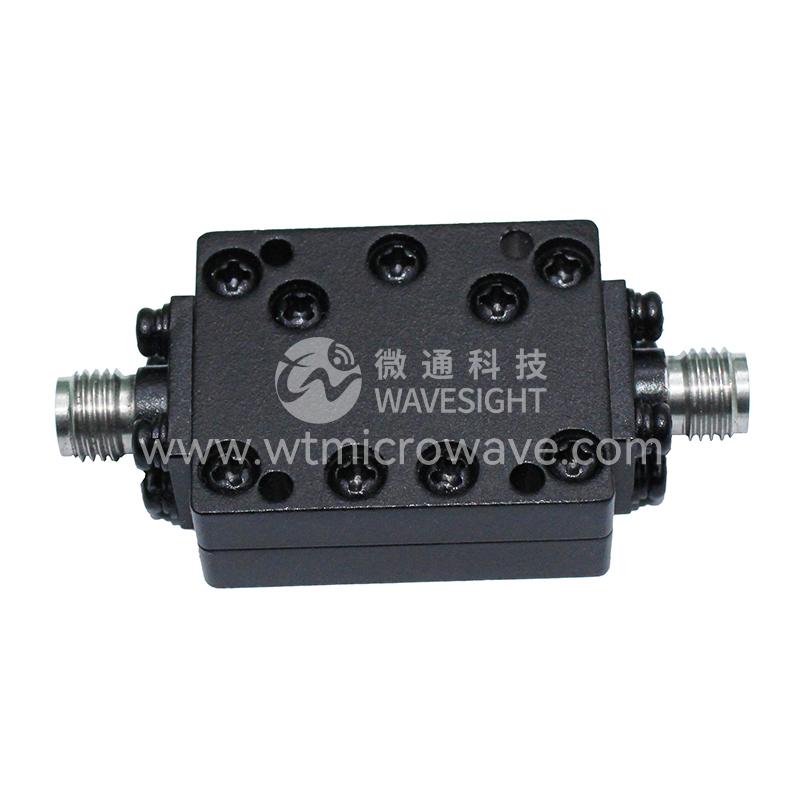

悬置基片带线高通滤波器

S/N

Item

Parameters

1

Cut Off Frequency

10.5GHz

2

Pass Band Frequency

10.5 ~ 24GHz

3

Pass Band Insertion Loss

≤2.0dB @ 10.5 ~ 11GHz

≤1.0dB @ 11 ~ 24GHz

4

Pass Band VSWR

≤1.6:1

5

Stop Band Attenuation

≥60dB @ DC ~ 9.58GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

27*22*10mm

13

Net weight

0.02 KG
