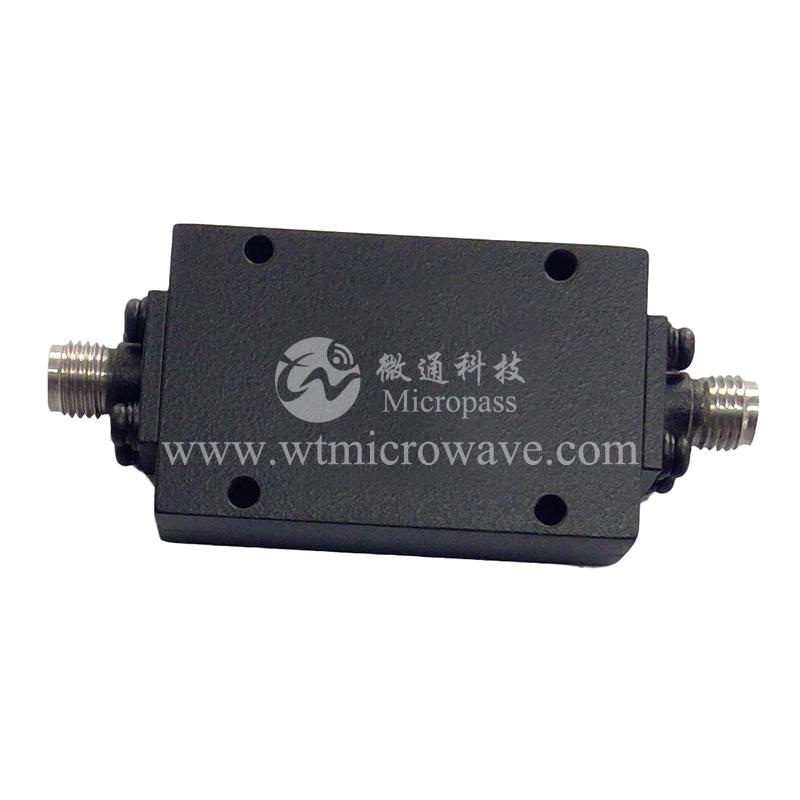

中断されたストリップラインローパスフィルター

S/N

Item

Parameters

1

Cut Off Frequency

3.75GHz

2

Pass Band Frequency

DC ~ 3.75GHz

3

Pass Band Insertion Loss

≤1.0dB @ DC ~ 3.55GHz

≤1.5dB @ 3.55 ~ 3.75GHz

4

Pass Band VSWR

≤1.3:1

5

Stop Band Attenuation

≥60dB @ 4.25 ~ 11.8GHz

6

Impedance

50 Ohms

7

Power Handling

15W Max.

8

Connectors

SMA-Female

9

Surface Finish

Guide Oxygen or Painted Black

10

Temperature Range

-55℃ ~ +85℃

11

Material

Housing: 6061 Aluminum alloy

Connectors: Stainless Steel

screw: Stainless Steel

12

Dimensions

38*24*10mm

13

Net weight

0.03 KG
